Driver’s seat unit for hydraulic shovels

• Floor plate is produced by using floor handling robot & welding robot system.

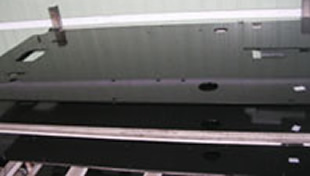

• The domestically produced floor plate (bottom of the assembled floor plate) is then cation painted black.

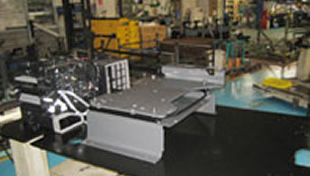

• The floor plate is set to the production line and air-conditioning units etc is installed.

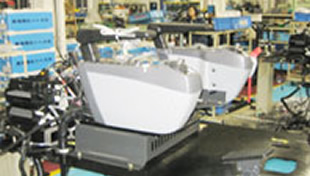

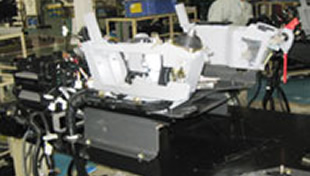

• After assembling the console, fit up the PC control bulb, through the hydraulic hose underneath the floor. After assembling both consoles onto the floor frame, both PPC control valves on the left and right are installed followed by the assembly of hydraulic hoses underneath the floor.

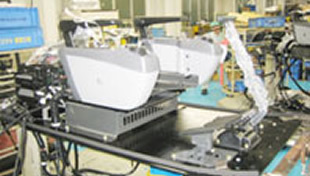

• Covers are filted on the side of both consoles before the armrest is assembled.



• Assemble the control bulb in front of the floor.Travel control valve is assembled onto the fore-part of the floor frame.

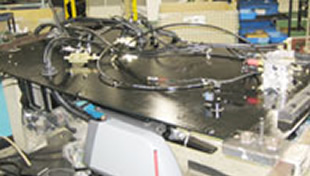

• The floor plate is turned 180°by the pallet which it is mounted and pipings, electric harnesses etc are assembled onto the bottom side of the floor.

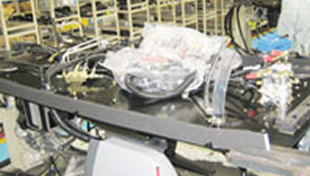

• After connecting the hydraulic hoses and installing the electric harnesses, the harnesses are covered with plastic bags before self-inspection of the bottom-side.

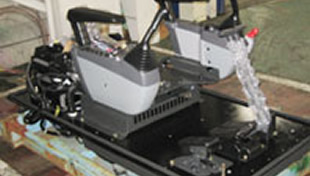

• After the procedures on the bottom-side is completed, the floor frame is turned upright again for self -inspection. Products which have passed the inspection, are delivered to the customer on special pallets.
